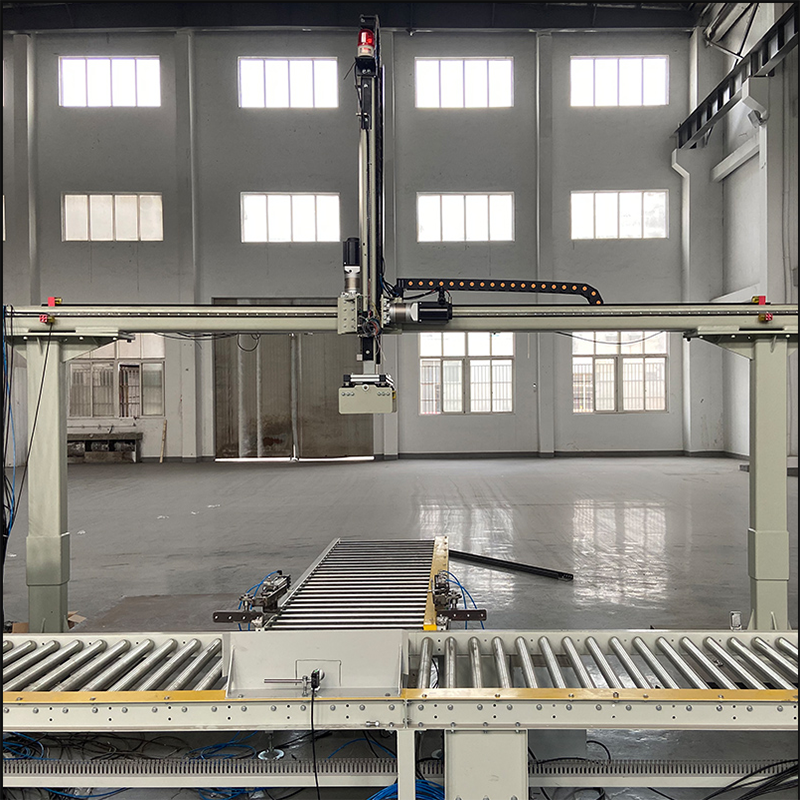

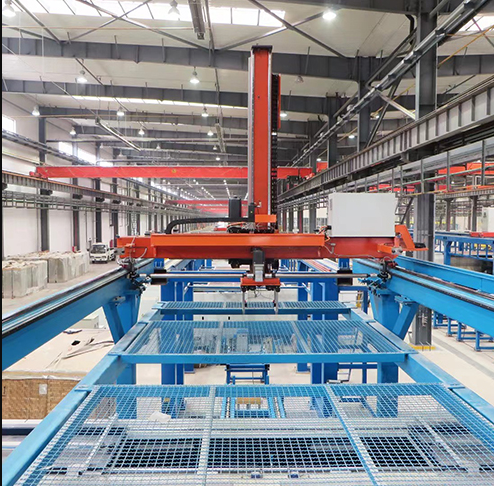

The sheet loading and unloading production line is an indispensable part of the modern plate processing industry. It is responsible for taking the plates out of the stack, sending them to the processing equipment, and then taking out the processed plates and sending them to the next process or stacking area. Reasonable loading and unloading equipment can not only improve production efficiency, but also ensure the flatness of the plates and avoid scratches and other problems.

A complete sheet loading and unloading production line usually includes the following equipment:

Loading device:

Vacuum suction cup: Use vacuum suction to suck up the plate, suitable for plates of various materials and thicknesses.

Mechanical gripper: Use mechanical gripper to clamp the plate, suitable for thicker plates.

Roller conveyor: Convey the plate smoothly to the processing equipment.

Conveying system:

Roller conveyor: Used to convey plates, and the conveying speed and direction can be adjusted according to production needs.

Chain conveyor: Suitable for conveying heavy plates.

AGV trolley: It has high flexibility and can move freely according to production needs to achieve flexible production.

Stacker: Stack the processed plates according to certain rules.

Control system:

Control the operation of the entire production line to achieve automated production.
