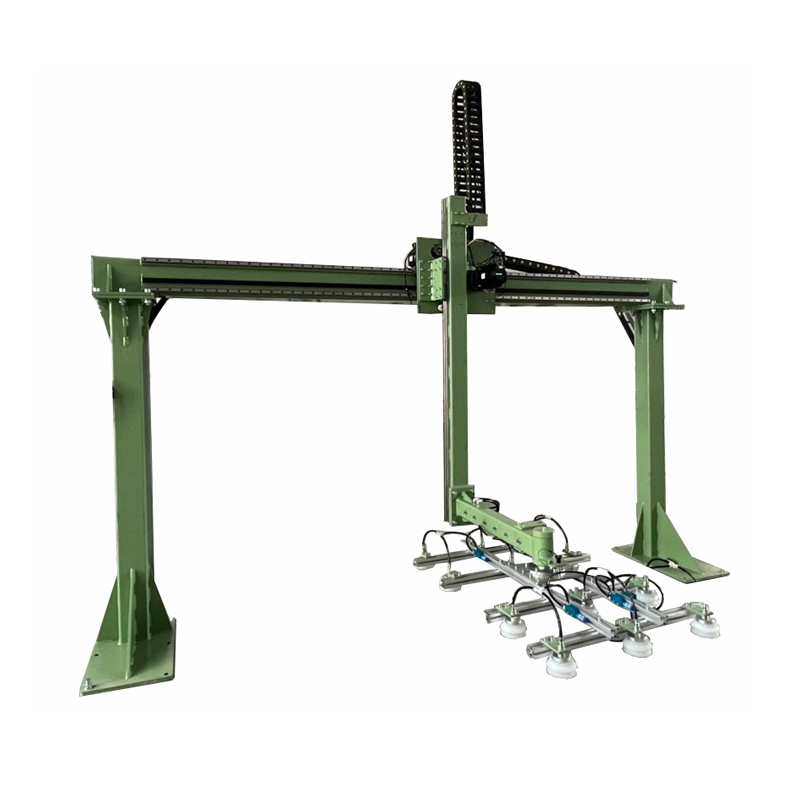

The truss-type manipulator is a kind of light lifting equipment, usually composed of steel beams, running rails, traveling mechanisms, lifting devices, control systems, etc. It can travel on rails and is used for material handling and assembly. The truss-type manipulator can quickly and safely complete the flat lifting operations of various materials. Its traveling mechanism is very light in weight, easy to operate, and can move as desired.
Application industries of automatic truss manipulator:
| Load (KG) | 20 | 50 | 70 | 100 | 250 |
| Linear velocity （m/s） | |||||
| X Axis | 2.3 | 1.8 | 1.6 | 1.6 | 1.5 |
| Y Axis | 2.3 | 1.8 | 1.6 | 1.6 | 1.5 |
| Z Axis | 1.6 | 1.3 | 1.3 | 1.1 | 1.1 |
| Scope of work（mm） | |||||
| X Axis | 1500-45000 | 1500-45000 | 1500-45000 | 1500-45000 | 1500-45000 |
| Y Axis | 1500-8000 | 1500-8000 | 1500-8000 | 1500-8000 | 1500-8000 |
| Z Axis | 500-2000 | 500-2000 | 500-2000 | 500-2000 | 500-2000 |
| Repeated positioning accuracy （mm） | ±0.03 | ±0.03 | ±0.05 | ±0.05 | ±0.07 |
| Acceleration (m/s²） | 3 | 3 | 3 | 2.5 | 2 |
Based on the product information, usage conditions, installation site environment, and layout provided by the customer, we provide customized solutions for free.
For complex on-site conditions or special workpieces, Tongli can provide on-site investigation and measurement services to make appropriate solutions.
All accessories have passed factory testing and meet specifications, enabling continuous and unobstructed operation.
Having a professional equipment installation team, with excellent skills and tools, we provide fast and reliable robotic arm installation services.
